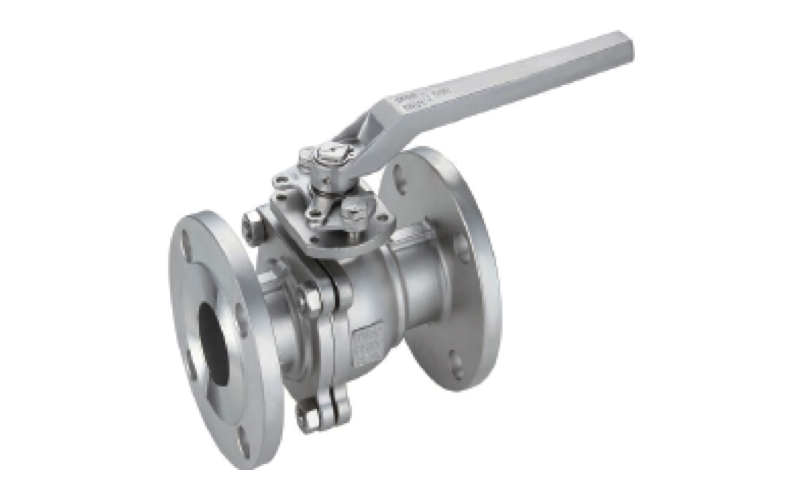

| Body | Ball Valve |
| General Description | Ball Valve - Centric rubber lined |
| Design Code | EN 593 |
| Size Range | DN 50 – 400, NPS 2”- 16” |
| Maximum Pressure | 10/16 bar - optional 20bar for DN 400 |
| End Connection | GB/T2501(6) PN 6, 10,16,25 and 40 |
| EN 1092 PN 6, 10,16,25 and 40 |
| AWWA C207 cl. B, D and E |
| BS 10 table D and E |
| Face to Face | EN558-1/2 |
| ISO 5752 |
| Body Material | Cast steel / Stainless steel / Cast bronze / Duplex steel |
| Stem Material | 410 / Stainless steel / Al-bronze / Duplex steel
|
| BALL Material | Stainless steel / Al-bronze / Duplex steel |
| Seal Material | PTFE / RPTFE |
| Anti-Static Design | In accordance with EN 736/3 and API609 |
| Fire protection Design | In accordance with API607 |
