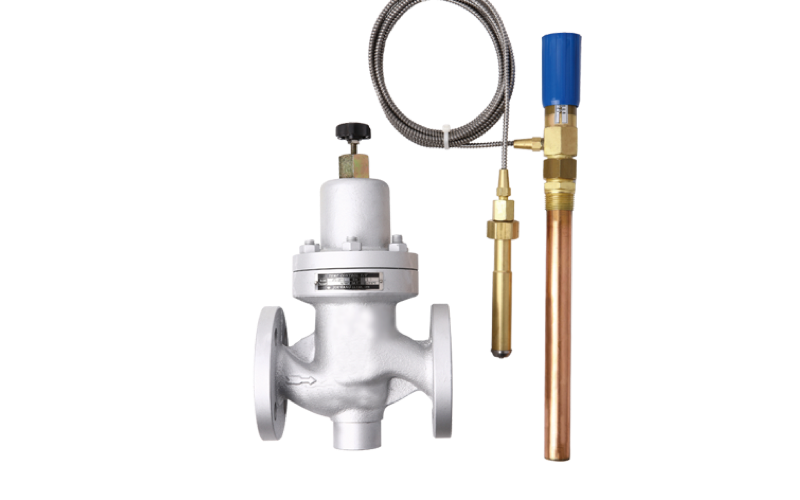

For 2-Way Temperature Control Valve, when using single seat,its application pressure is limited as operational force of sensor is reduced by the pressure to seat, and when using double seat, there are problems related to the manufacturing,seat leakage and precision of control. Therefore, by using pressure balanced single seat with bellows, the problems can be resolved and, in addition, the temperature range can be widened, control precision be enhanced and the product’s size could be more compact..
Product Specification
| Working Pressure | MAX 10kgf /㎠ |
| Working Temperature | 220℃ |
| Fluid | Steam |
| Temperature Adjustable Ranges | 40℃ ~110℃ |
| Cap. Tube Length | 2M / 5M |
| Material | Body | Bronze |
| Ductile | Cast Steel |
| Bellows | SUS304 |
Leakage | ≤0.05% of Cv |
| Seat | Single Seat (Linearity) |
