It is mainly used as safety valve for small boilers, various pressure containers and instrumentation devices and Relief Valve for pumps.
Product Features
1. Easy to pipe owing to its reduced size and weight realized through a compact design.
2. Easy to repair and maintain owing to its simple structure and precise operation.
3. Sheets and disks are made of forged brass and no leak is found due to its thorough processing.
4. Adjusting spring ensures the precise operation as it is manufactured within the maximum acceptable stress range of its material.
5. It is a product certified by KOSHA (Korea Occupational Safety & Health Agency).
Product Specification

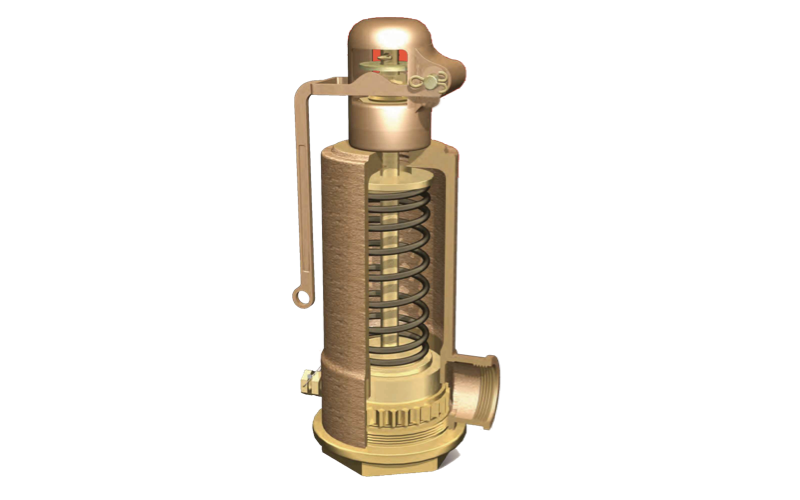

| Model | KSV-LT11 |
| Type | Lever Type |
| Non- Lever Type |
| Applicable Fluid | Steam & Air Liquid |
Applicable Pressure Kgf/ ㎠{MPa} | 0.35~1.0{0.035~0.1} |
| 1.0~3.0 {0.1~0.3} |
| 3.0~6.0 {0.3~0.6} |
| 6.0~12.0 {0.6~1.2} |
| 12.0~22.0 {1.2~2.2} |
Max Temperature ( ℃ ) | 220 |
| 150 |
| Material | Material | Forged Brass |
| Main Part | Cast Bronze |
| Connection | KS B 0222 According to the size of taper screw for pipe |
| ConnectionBody Hydraulic Pressure Test | 22kgf/㎠ {2.2MPa} |
