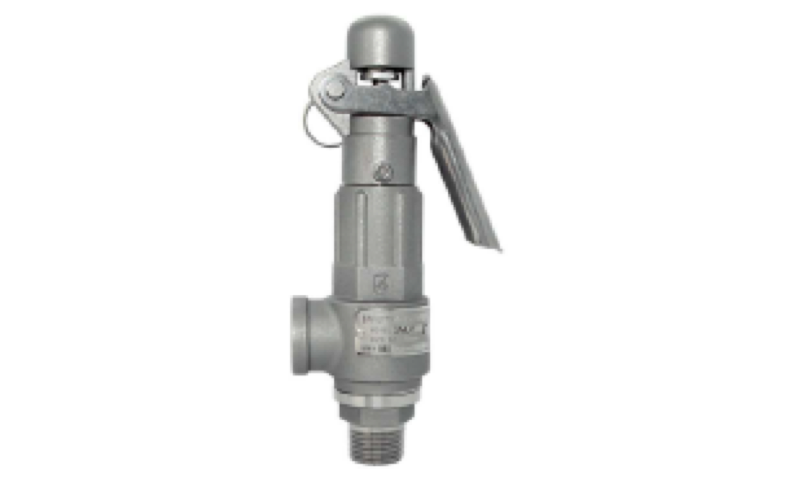

The safety valves are used in oil system, high-temperature pipes and various causticpiping systems.
Operating Principle
After installing in the piping system, the safety valve will work automatically whenthe pressure of medium in the system is reaching to the set value. lt releases pressure to protect the system.
Product Specification
| Operating Pressure | 0.1~35Bar |
| Operating Temperature | FKM Sealing | -20~180℃ |
| RPTFE Sealing | -60~280℃ |
| PTFE Sealing | -60~170℃ |
| EPDM Sealing | -40~110℃ |
| NO | Name | Material |
| 1 | Cap | SS304/SS316/BRONZE |
| 2 | Lever | SS304 |
| 3 | Nut | SS304 |
| 4 | Adjust Screw | SS304 |
| 5 | Stem | SS304/SS316 |
| 6 | Spring | SS304 |
| 7 | Body | SS304/SS316/BRONZE |
| 8 | Spring Seat | SS304/SS316 |
| 9 | Disc | SS304/SS316 |
| 10 | Sealing | PTFE/FKM/EPDM/RPTFE |
| 11 | Gasket | PTFE |
| 12 | Seat | SS304/SS316 |
