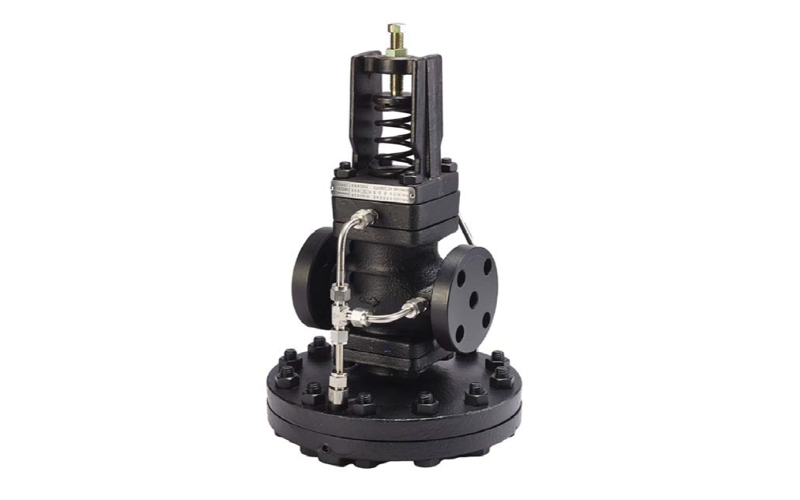

Pressure Reducing Valve for Steam is installed at construction sites, factories, heating systems, and elsewhere to make sure that the pressure of the outlet side remains below the set level regardless of pressure changes in the inlet side. In Series SF2002, the main valve and pilot valve are integrated into a single structure for easier handling and maintenance. Its relatively simple design guarantees increased reliability, durability, and precision in their pressure reducing function.
Product Specification
| Model | KRV-SF2002 |
| Type | Balanced Bellows |
| Applicable Fluid | Steam |
| Applicable Pressure Kgf/cm2{MPa} | Primary Side | 1.7 (Lower than 17.0) |
| Secondary Side | 0.02~0.2 {0.2~2.0} |
| 0.21~1.2 {2.1~12.0} |
Correct Temperature To Be Applied (℃) | -20~220 |
| Maximum Reduction Rate | 10 : 1 |
| Maximum Pressure Reduction Rate | 20 ：01 |
| Minium Difference In Pressure MPA （KGF/CM2） | 0.05（0.5） |
| Material | Main Body | Ductile Cast iron / Cast Steel |
| Key Part | Stainless Steel / Synthetic Rubber |
| Connection | JIS/DIN/ISO/ANSI Flanged |
