It is mainly used as Safety Valve for high-volume steam boilers, various pressure containers and instrumentation devices, and Relief Valve for pumps.
Product Features
1. It is a product designed and manufactured in accordance with the standard for safety valves for KSB 6216 steam and gas spring.
2. The discharging test of lever type product can be carried out manually under a pressure over 75% of discharging pressure.
3. Discharging capacity of this valve is higher than low and high lift type.
4. Trim parts show excellent performance as they are precisely processed with excellent material.
5. It is a product certified by KOSHA (Korea Occupational Safety & Health Agency)
Product Specification

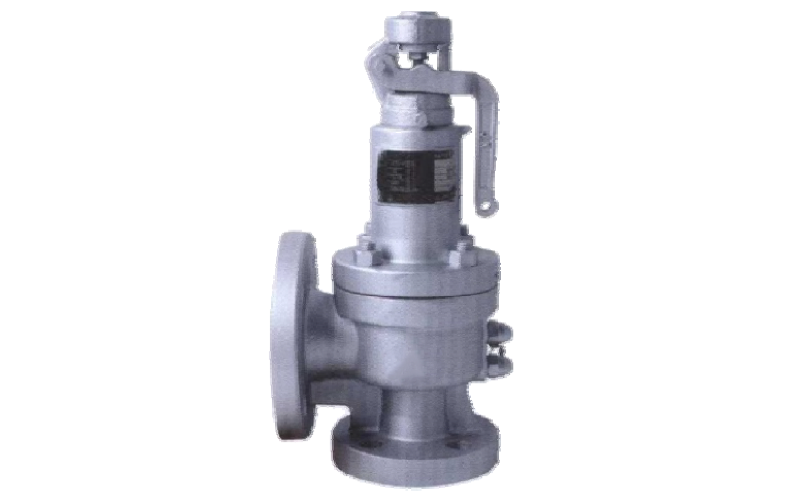

| Model | KSV-FF21 |
| Type | Lever Type |
| Non- Lever Type |
| Applicable Fluid | Steam & Air Liquid & Gas |
Applicable Pressure Kgf/ ㎠{MPa} | 0.35~1.0 {0.035~0.1} |
| 1.0~3.0 {0.1~0.3} |
| 3.0~6.0 {0.3~0.6} |
| 6.0~12.0 {0.6~1.2} |
| 12.0~22.0 {1.2~2.2} |
Max Temperature ( ℃ ) | 250 |
| Material | Material | Cast Carbon Steel |
| Main Part | Stainless Steel |
| Connection | <Inlet> According to the standard of pipe flange, KS B 1511 |
| <Outlet>According to the standard of 10K pipe flange, KS B 1511 |
| ConnectionBody Hydraulic Pressure Test | 44kgf/cm2{4.4MPa} |
