It is appropriate to use as Safety Valve for high pressure containers, Relief Valve for pumps and Safety Valve for instrumentation devices.
Product Features
1.Easy to pipe owing to its reduced size and weight.
2.Easy to repair and maintain owing to its simple structure.
3.Easy to adjust.
4.Adjusting spring ensures the precise operation as it is manufactured within the maximum acceptable stress range of its material.
5.It is a product certified by KOSHA. (Korea Occupational Safety & Health Agency).
Product Specification

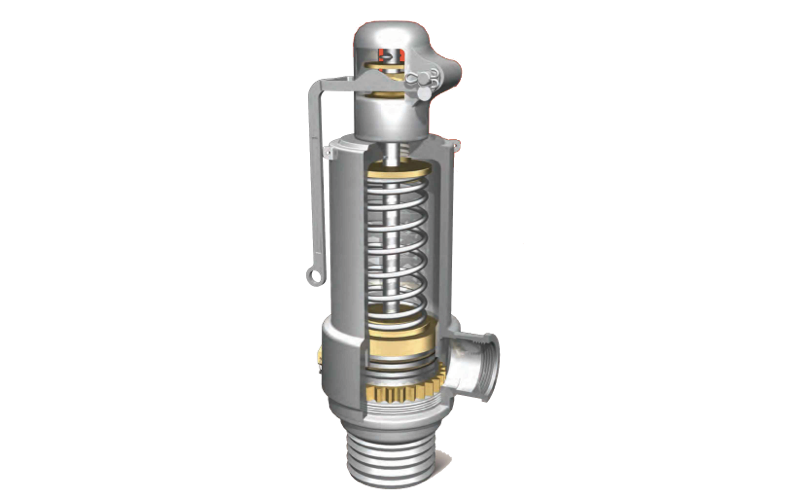

| Model | KSV-HT31 |
| Type | Lever Type |
| Non- Lever Type |
| Applicable Fluid | Steam & Air & Liquid & GAS |
Applicable Pressure Kgf/ ㎠{MPa} | 0.5~5.0 {0.05~0.5} |
| 5.0~15.0 {0.5~1.5} |
| 15.0~33.0 {1.5~3.3} |
Max Temperature ( ℃ ) | 220
|
| Material | Body & Trim | Stainless Steel |
| Bonnet | Cast Bronze |
| Connection | KS B 0222 According to the size of taper screw for pipe |
| ConnectionBody Hydraulic Pressure Test | 66kgf/cm2{6.6MPa} |
