Product Specification
Working Pressure
| MAX 16kgf /㎠{1.6MPa} |
| MIN 0.35kgf /㎠{0.035MPa} |
| Working Temperature | MAX 220℃ |
| Connection | KTR-DT21 : Screwed |

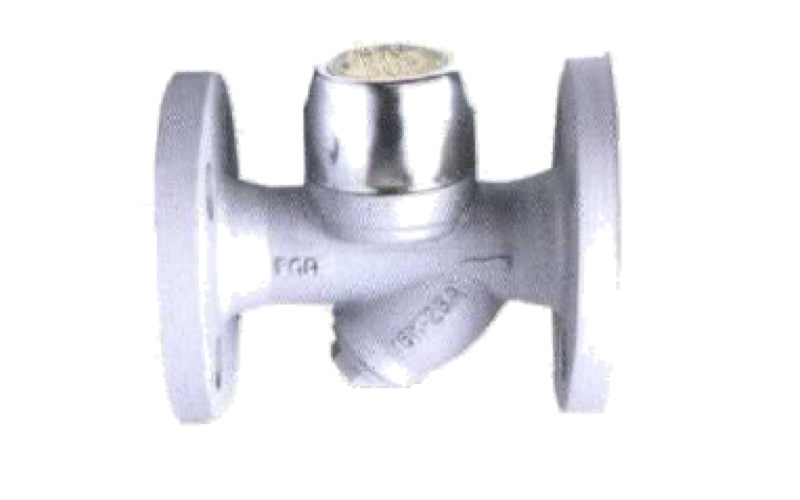

| Hydrostatic Test Pressure | KTR-DF21 : Flanged |
| 24kgf / ㎠{2.4MPa} |
* One-touch cap (Round, head) for size 15~25mm
* Bolted cap (square head) for size 32~50mm
Materials
| NO | Name | KTR-DT21/DF21 |
| 1 | Body | Ductile Iron or Cast Iron |
| 2 | Insulation Cap | Stainless Steel |
| 3 | Cap | Stainless Steel |
| 4 | Disc | Stainless Steel |
| 5 | Seat | Stainless Steel |
| 6 | Screen | Stainless Steel |
| 7 | Plug | Cast Iron or Forged Brass |
| 8 | Gasket | Teflon |
