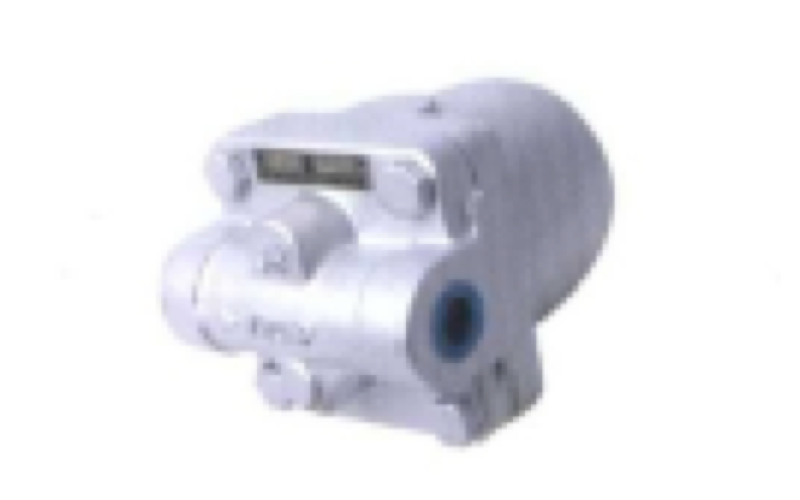

KTR-FT12
KTR-FT12
Ball Float Steam Teap
Product Overview
Product Specification
Working Pressure
4.5kgf /㎠{0.45MPa}
10kgf /㎠{1.0MPa}
14kgf /㎠{1.4MPa}
Working Temperature
MAX 220℃
Connection
KTR-FT12 : Screwed
KTR-FF12 : Flanged
Hydrostatic Test Pressure
1.5 times than the pressure rating
Flow Direction of Fluid
15A~25A
Left → Right
32A~50A
Right → Left
Materials
NO
Name
KTR-FT12/FF12
1
Body
Cast Iron
2
Bonnet
Cast Iron
3
Seat
C.Stainless Steel
4
Seat Body
C.Stainless Steel
5
Disc
Stainless Steel
6
Stem
Stainless Steel
7
Ball
Stainless Steel
8
Lever
C.Stainless Steel
9
Gasket
Non-Asbestos
10
Bolt
Carbon Steel
11
Air Vent Ass’y
Stainless Steel
