Application
1.Cryogenic Gate Valves are specially engineered and designed for piping systems used in the storage and transport of liquefied gasses such as LNG and liquid nitrogen and oxygen.
2. It has stainless steel and hard-alloy sealing face and long service life. And it is available manual operation, pneumatic or motor-drive, gear-drive.
Product Specification

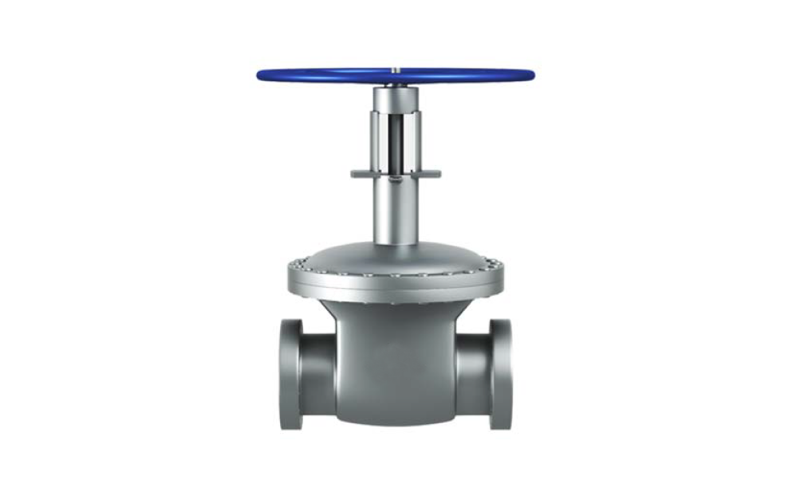

| Model | KCV-GT100 |
| Adjustment Range ℃ | -196~400℃ |
| Size | 1”~24” |
| Correct pressure to be applied | CALSS150~2500 |
| How to connect the product | ASME B 16.5 FLANGE/BW |
| Material | Main Body | Stainless Steel |
| Key Part | Stainless Steel |
