KSV ductile iron flow balance valve adopts low-resistance Y-shaped structure, the shell is coated with epoxy resin. Flow measuring fittings on both ends feature good self-sealing performance and easy adjustment. The highly precise valve core and favorable sealing performance ensure measurement precision and persistence.
Product Features
1.High measurement precision.
2.Linear ball valve installed in the front of the measuring point for maintenance.
3.Plug-in measuring point, allowing quick connection.
4.Compact Y-shaped structure, with full flow.
5.Shut off and regulating functions.
6.Regulating memory function.
7.Precise digital setting and display.
Product Specification

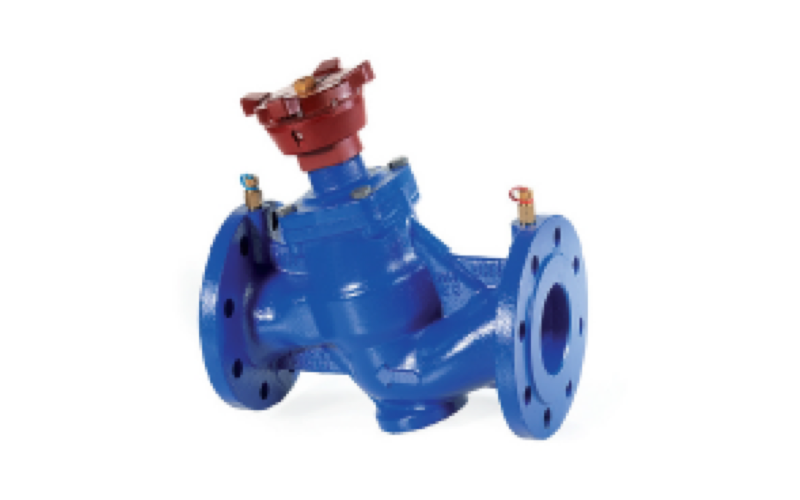

| Model | KBRV-900
|
| Body | Ductile Iron |
| Bonnet | Ductile Iron |
| Valve Element | Stainless Steel |
| Measuring Port | Brass |
| Seat Seal | EPDM |
| Handwheel | Nylon |
| Pressure Ratings | PN16/PN25 |
| Working Temperature | -10°C~130°C |
| Size | 2½〞- 20〞, DN65 mm-DN500 mm |
| End Type | ANSI or BSEN flanged |
| Medium | Water |
