KSV small-sized brass balance valve adopts low-resistance Y-shaped structure, and its orifice plug is of V-shaped design for better linear regulation.Flow measuring fittings on both ends feature good self-sealing performance and easy adjustment. The highly precise valve disc and favorable sealing performance ensure measurement precision and persistence.
Product Features
1. High measurement precision.
2.Compact Y-shaped structure, with full flow.
3. ON/OFF and regulating functions.
4.Regulation memory function.
5. Precise digital setting and display.
6. Plug-in measuring point, allowing quick connection.
Product Specification

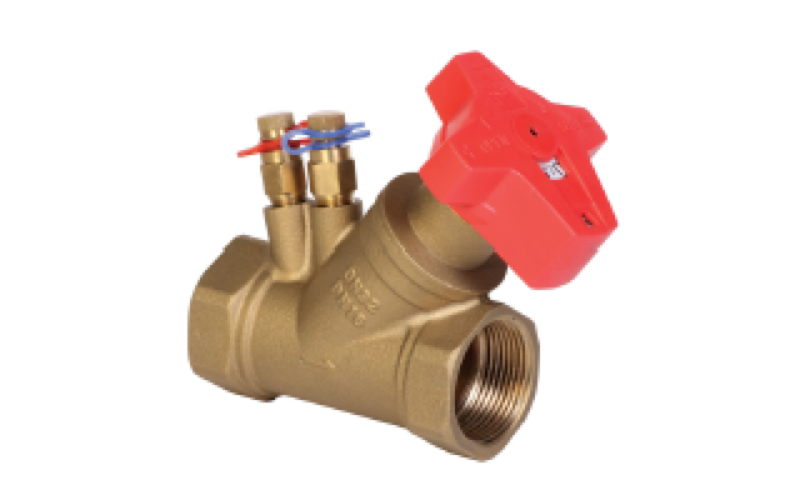

| Model | KBRV-800 |
| Body | Brass |
| Bonnet | Brass |
| Valve Element | Copper Alloy |
| Measuring Port | Brass |
| Seat Seal | PTFE |
| Handwheel | ABS resin |
| Pressure Ratings | PN10 / PN16 / PN20 |
| Working Temperature | -10°C~120°C |
| Size | ½〞- 2〞, DN15 mm-DN50 mm |
| End Type | BSPT or NPT |
| Medium | Water |
*Customizable 50 mm long stainless steel extension pipe fittings at measuring points are allowed to stretch out of thermal insulation materials of the system.
